Small Engineering : Star Machines - Modern multi-axis CNC sliding head machines with sub-spindle and milling capability

Precision Engineering
Latest Star machines in operation at Small Engineering Limited.
Star SA12/16
  • 16mm maximum capacity bar
  • Magazine bar-feed
  • Fully Automatic CNC Production Lathe
  • 3 Live spindles for in-cycle cross drilling/milling/tapping
  • Spindle Index
  • Synchronous Sub-spindle for simultaneous back machining ability.
Star SR20R
  • 20mm maximum capacity bar
  • Magazine bar-feed
  • Fully Automatic CNC Production Lathe
  • Total of 9 Live Cross & End working drilling/milling/tapping
  • Spindle Index plus "C" Axis
  • Synchronous & Indexing Sub-spindle for simultaneous back machining ability.
Star SV12
  • 16mm maximum capacity bar
  • Magazine bar-feed
  • Fully Automatic CNC Production Lathe
  • Up to 32 cutting tools available
  • "C" axis on both spindles, ideal for very complex parts.
Star SR10J
  • CNC Swiss Type Automatic multi-axis lathe
  • Milling / Turning with sub spindle & automatic magazine bar feed
  • Maximum machining Diameter 10mm
  • Maximum machining Length 135mm
  • 19 Tool Stations including 5 Live Tool Stations for cross milling & drilling & rigid tapping.
    • Star SR10J in action Star machines in action

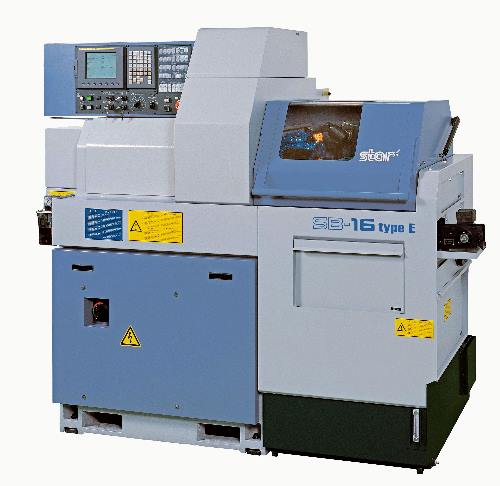

Star SB-16E
  • 16mm maximum capacity bar
  • Magazine bar-feed
  • Fully Automatic CNC Production Lathe
  • 3 Live spindles for in-cycle cross drilling/milling/tapping
  • Spindle Index
  • Synchronous Sub-spindle for simultaneous back machining ability.
  • Very fast Machining cycles, 35m/min axis movement
  • "JBS" Compensating guide bush system fitted
    • Star SB-16E in action Star machines in action
